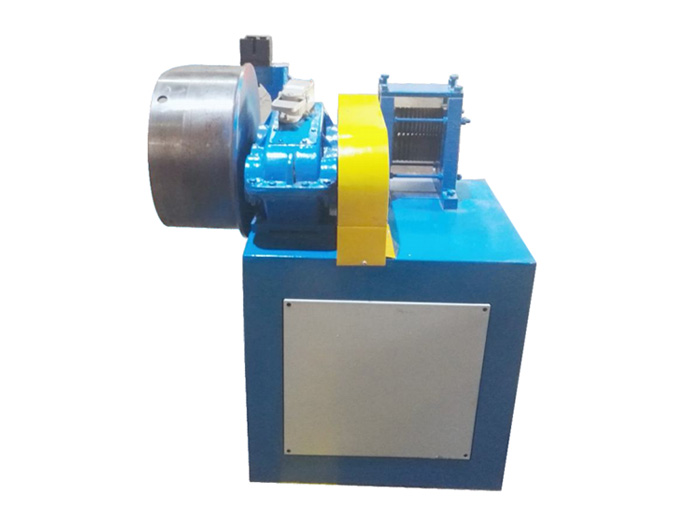

Threading Die Pointing Machine

The CZ series die-piercing tipping machine independently developed, designed and produced by Wuxi Kangstar Machinery Electric Co., Ltd. is a necessary auxiliary machine for the LZ straight-line, LT water-tank, and LW pulley-type wire drawing machine series. Rolling the tip and threading the mold. Machine features: Ordinary motor driving, special materials for rolls, rolling, single tipping machine can be made according to user requirements

典型型號 Typical model		CZ-250A	CZ-250B	CZ-100
軋尖范圍直徑 Roll tip diameter	mm	8.0-2.0	6.5-1.0	3.0-0.8
卷筒直徑（選配）	mm		450-350	250-200
軋尖長度 Rolling tip length	mm	100-150	100-150	100-150
軋輥轉速 Roll speed	r/min	16	16	26
電機功率 Motor Power	Kw	5.5	5.5	1.5
